API keys and authentication • steamr

The Steam API is very inconsistent in the way it provides access to its services. Some functions do not need any identification, others require a Steam API key, and the most sensitive ones require you to be logged in. It is not always obvious which functions require which type of authentication, but steamr functions perform initial checks to ensure that authentication is given:

get_userdata()
#> Error: Session is not authenticated. You can login using the auth_credentials or auth_qr functions.

This vignette covers two package features: API keys and user authentication.

API key

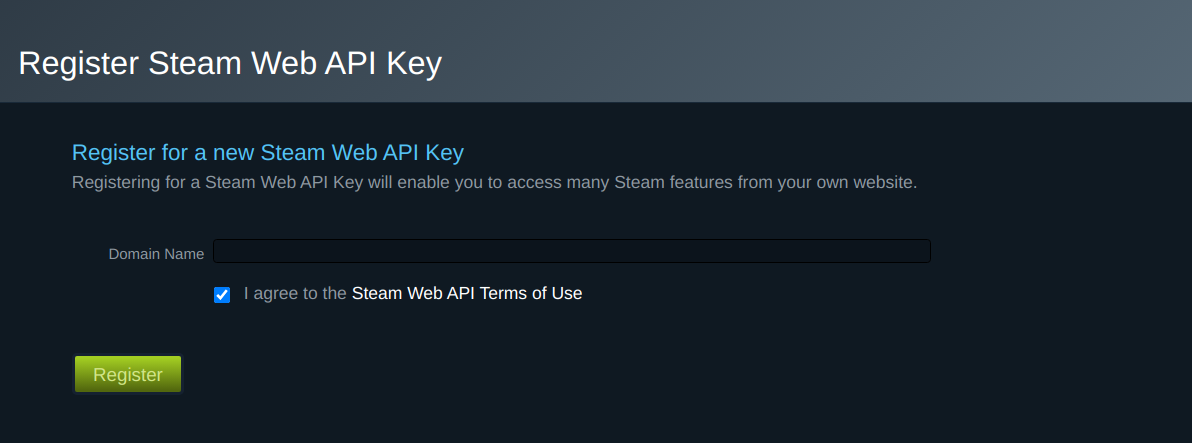

A Steam API key can be requested by any Steam account that has spent at least 5 USD in the Steam store. The account also needs to use two-factor authentication using the Steam mobile app. An API key can then be requested on Steam’s developer site: [https://steamcommunity.com/dev/apikey]. You need to be logged in to request an API key.

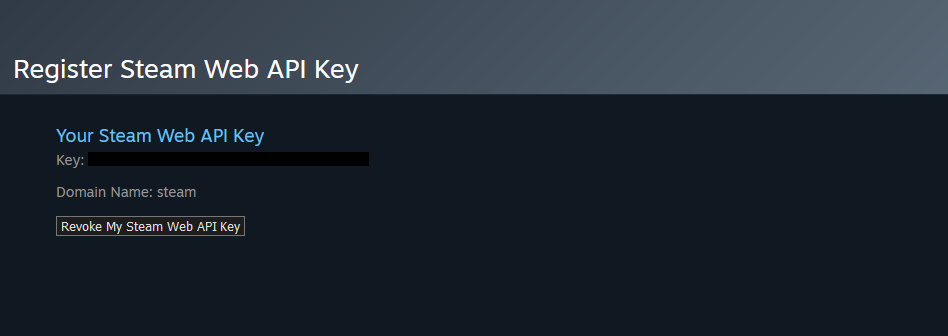

After a successful request, an API key will be generated. You can view the API key anytime you visit Steam’s dev site.

For use in steamr, set your API key as the environment variable STEAM_API_KEY. Requests sent to the Steam API will automatically fill in the key parameter.

# Sys.setenv(STEAM_API_KEY = "XXXX")
get_steam_level("76561197960435530")
#> [1] 31

You can suppress this behavior by setting options(steamr_do_auth = FALSE).

options(steamr_do_auth = TRUE)
get_steam_level("76561197960435530")
#> [1] 31

User authentication

User authentication is a bit more spicy. In more technical terms, authenticating a session means sending an access token with each request and setting the sessionid, steamLoginSecure, steamCountry, and steamRefresh_steam cookies. steamr achieves this through the functions auth_credentials and auth_qr. To login using either function, the Steam mobile app is required.

Authentication using credentials

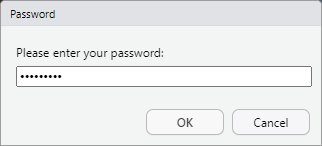

auth_credentials performs authentication by asking for username and password. The password argument accepts a function that safely asks for a password. This can be functions such as askpass::askpass or rstudioapi::askForPassword or any other prompt function that obfuscates the password string. The password is then RSA-encrypted using a Steam public key to ensure a secure transfer.

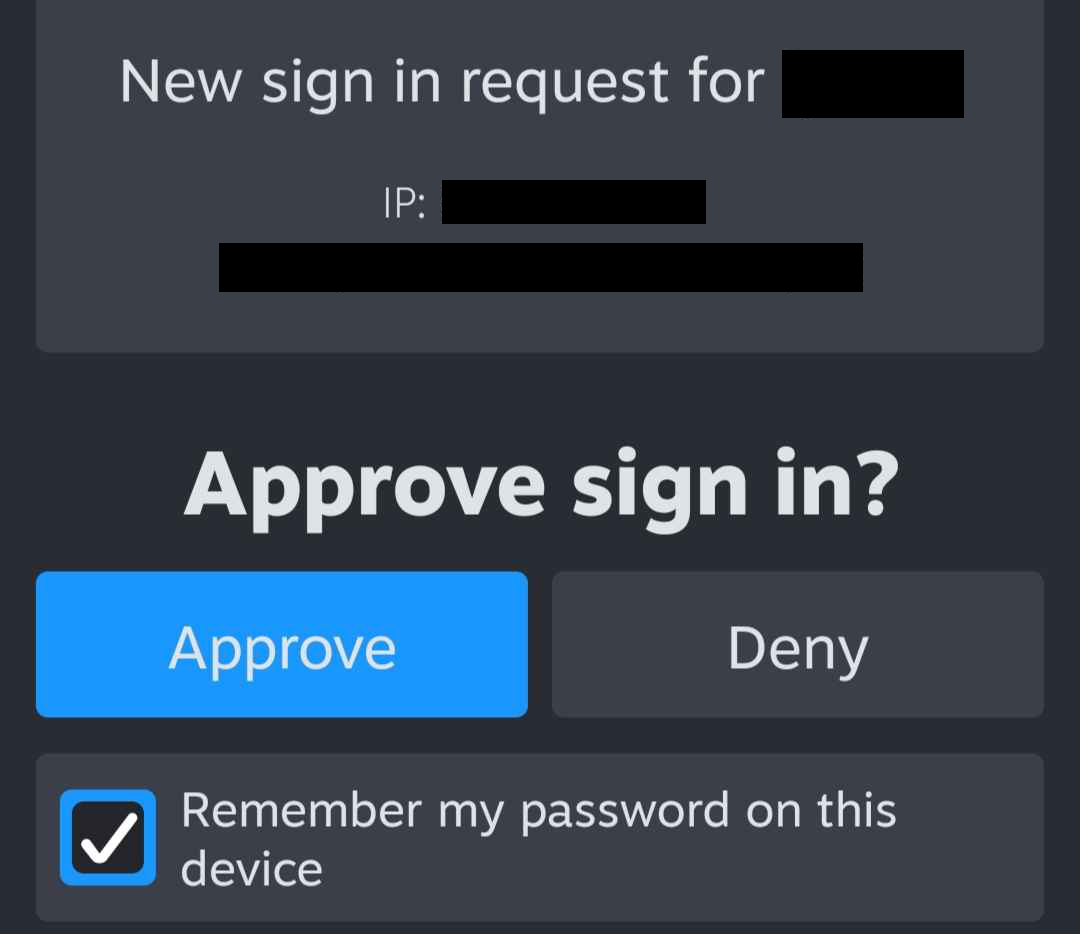

If the prompted password is correct, an authenticated session is initialized. Steam will now perform two-factor authentication using the Steam mobile app. You will receive a notification on your mobile device asking you to confirm the login request. Upon approval, auth_credentials will finalize the login and set the necessary cookies. As an alternative to manually approving each login request, you can also pass a Steam guard code using the shared_secret argument.

Authentication using QR codes

Although auth_credentials takes great care of encrypting and obfuscating passwords wherever possible, passwords are still passed through the R session. To avoid entering passwords altogether, auth_qr can be used. This function requests a Steam login link and parses it as a QR code. This is essentially the same method that is used on Steam’s login page ([https://store.steampowered.com/login/]).

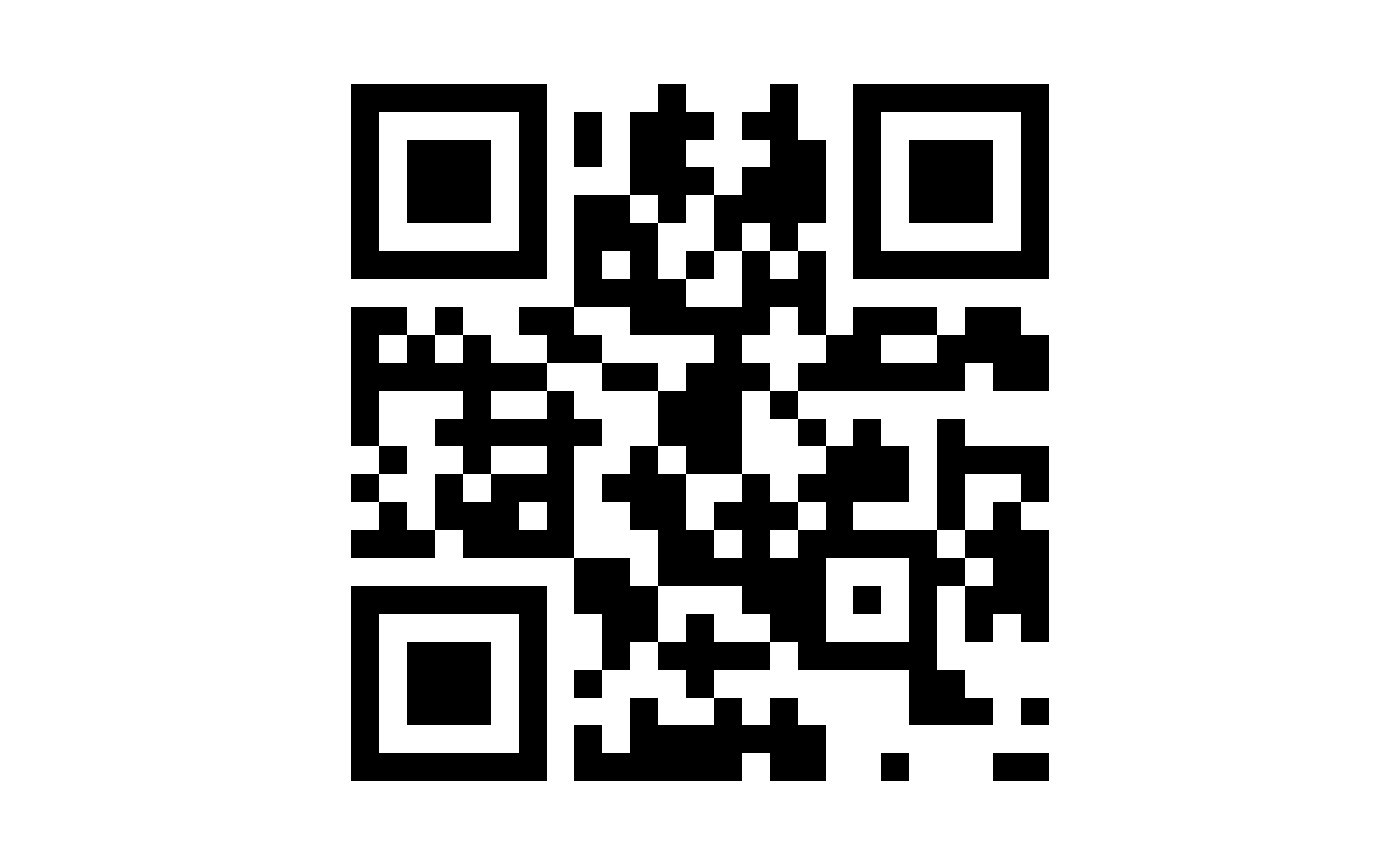

The QR code is generated using the qrcode package and rendered as an R plot. This QR code can be scanned using the Steam mobile app to authenticate the session.

While this method avoids password prompts entirely, it depends on the ability to render and scan R plots interactively. At the end of the day, both functions require an interactive session and active user feedback.

Persistent sessions

By default, authenticated sessions are ephemeral, they expire quickly and do not survive a session restart. They are stored in a temporary file and die when the R session ends. To persistently save a session for an undetermined time, you can use the persistent argument to auth_credentials. A persistent session takes longer to expire and is stored in a persistent directory. It uses rappdirs::user_cache_dir() to store authentication details and session cookies and is re-initialized when the package is loaded. Nonetheless, even persistent sessions expire at some point. To manually kill a stale session, you can use logout(). This deletes all information R has on the current authenticated session.
